1.Three axises adopt import Taiwan Hiwin (or PMI) square linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime .
2.X,Y,Z three-axis all have the waterproof, dustproof system
3. Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
4. Constant power spindle and motor, hightly cutting capability ,high efficiency.
5. Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam, Castmate ,Wentai ,Coredraw.
6. Double direction cutters cooling system can prolong the lifetime of using.
7. High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.
AKTEK-1325 Disc ATC CNC Router Introduction:
1. Designed for customized furniture, panel-type furniture, customized closet cabinet production, it has cutting, drilling, grooving and
other processing functions, improves efficiency, save material and labor.
2.Simple operation: installed with automatic typesetting software, simply enter sheet size to automatically optimize the layout, workers
can easily operating this machine after 3-5 hours training.
3. Machine frame is heat treated after welding to remove any welding stress or tension.
4.Safety light sensor system using three light beams protecting the operator standing at the front of the machine and 1800mm high safety
fences at both ends and across the rear of the machine.

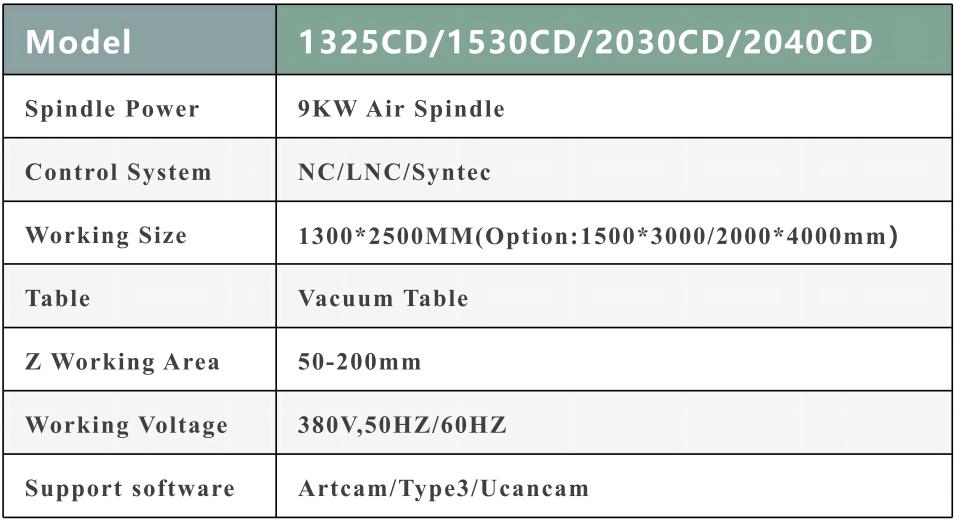

Technical Parameter:
| Working area | 1300mmx2500mm |
| Z Working area | 200mm |
| Table size : | 1500mmx3000mm |
| Processing precision : | 0.05mm |
| Reposition precision: | 0.02mm |
| Table structure : | aluminium |
| X,Y,Z structure : | X,Y,Z ball screw |
| Command: | G CODE |
| Machine power: | 22KW |
| Max processing speed : | 24000mm/min |
| Max speed : | 18000mm/min |
| Working voltage: | AC380V/50Hz |
| Spindle power: | 9KW Air Spindle |
| Spindle rotating speed : | 0-24000rpm/min |
| Drive motor : | Yaskawa/Panasonic/Leadshine Servo Motor |
| Operation system : | Syntec/LNC/NC studio |

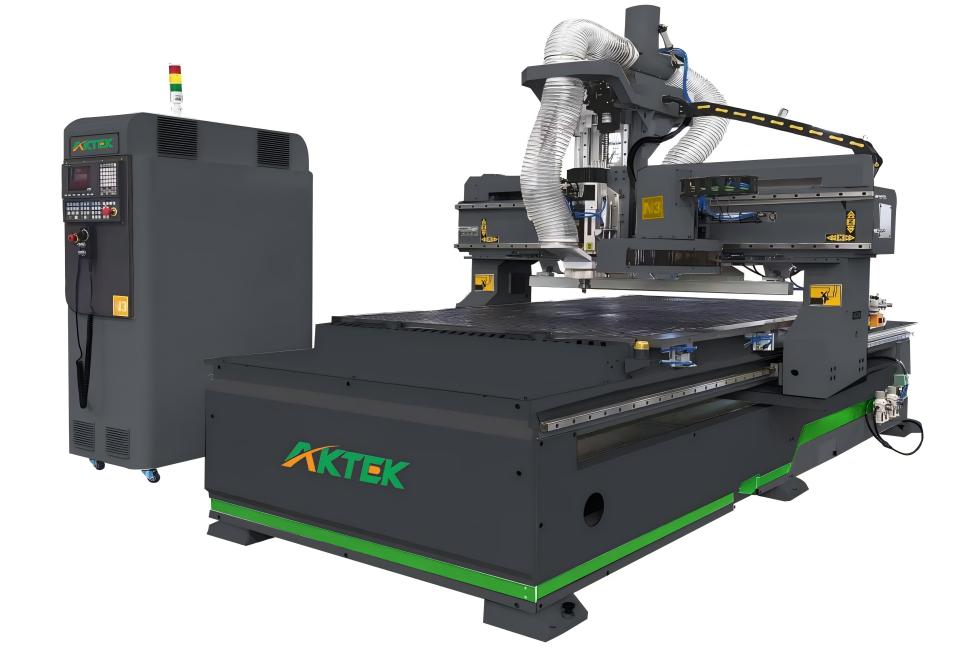

Machine Details Show:
Sample Display:
