Pneumatic Tool Change ATC  Wood Door Furniture Engraving CNC Router Machine

Pneumatic Tool Change ATC Wood Door Furniture Engraving CNC Router Machine

1. Heavy duty thicker and bigger welded steel tube frame is more stronger.
2. Taiwan Hiwin linear rails and bearings, high precision helical racks on the X and Y axes, with TBI ballscrew Z axis.
3. Controls with a very easy-to-use DSP handle controller.
4. Linear square guide rail with automatic oil lubrication device, ensuring long life time working, reduce the time of machine maintenance


Share

Product Overview

AKTEK 1325 Pneumatic ATC Wood CNC Router Introduction:

1. Structures : solid integrally cast lathe bed, solid and stable,high rigidity and high accuracy.

2 .Movement parts : high precison ball screw and Square linear rails ensures more stable movement and longer working lifetime.

3. Spindle motor water cooling brushless spindle, low noise, vigorous cutting strength and long time mass processing.

4Vacuum table: 5 lines T slot added on  the vacuum  table , user can save vacuum pump power

when the material is small.  Just holding on the table by clamping.

AKTEK 1325 Penumatic ATC Wood CNC Router Application:

1) Advertising industry.
Engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
2) Woodworking industry.
Solid wood furniture, custom furniture, furniture decoration, musical instrument manufacturing, wooden
handicrafts, art models, artistic font characters, logos, plate plane carving, artistic murals, screen relief carving and cutting, decoration processing, gift packaging, wave boards, Cutting the three-dimensional surface and shape of various wooden industrial
products such as electrical appliances, sporting goods, etc.
3) Decorate industry.
Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
4) Craft & gift industry.
Engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
1. Woodworking industry: three-dimensional wave plate processing, wooden doors, screens, craft window and many kinds of furniture's auxiliary processing.
2. Advertising industry: advertising signs, logo production, acrylic cutting, plastic molding, and a variety of advertising material processing.
3. Die industry: carving copper, aluminum, iron, other metal molds and marble, plastic plates, wood and other non-metallic molds.
4. Other industries: Carving a variety of shadow carving, relief and widely used in Gifts & Crafts industry.


AKTEK 1325 Penumatic ATC Wood CNC Router Parameter:


Machine bodyWelded steel tube structure
Working area1300*2500*200mm
Body dimensions3100mmx1700mm x1650mm
Feeding height200mm
Working tableVacuum table
GuidewayHiwin linear rail guide
Drive modeXY----Rack and pinion,Z-----ballscrew drive mode
Drive motorStepper motor (optional:Leadshine hybrid stepper motor or  servo motor)
Spindle motor4x6kw air-cooling spindle
dust collectorYes
Oil lubricationYes
Max travel speed17000mm/min
Working speed0 - 8000mm/min
Mechanical precision0.01mm
CommandG code, u00, mmg, plt
Control systemLNC
Compatible design softwaretype 3 software, Artcut software, Artcam software
Packing dimensions2.15x 3.15x1.96m
Gross weight1500KG

AKTEK 1325 Penumatic ATC Wood CNC Router  Details:

Pneumatic Tool Change Wood CNC MachinePneumatic Tool Change ATC  Wood Door Furniture Engraving CNC Router Machine


Pneumatic Tool Change ATC  Wood Door Furniture Engraving CNC Router MachinePneumatic Tool Change ATC  Wood Door Furniture Engraving CNC Router Machine

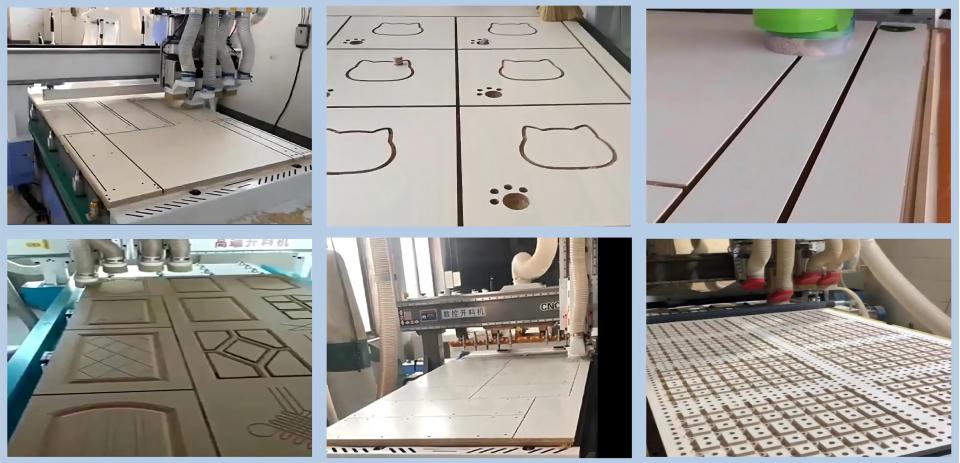

AKTEK-1325 Pneumatic ATC CNC Sample Display:

Pneumatic Tool Change ATC  Wood Door Furniture Engraving CNC Router Machine
