Features
1. Excellent design and well-chosen electric accessories minimize the failure rate.
2.Water tank and automatic water-supplying cooling system protect the tool effectively while processing all kinds of stone.
3.Automatic oil supplier makes the maintenance operation easily.
4.Dust protector and waterproof design ensure stable transmission.

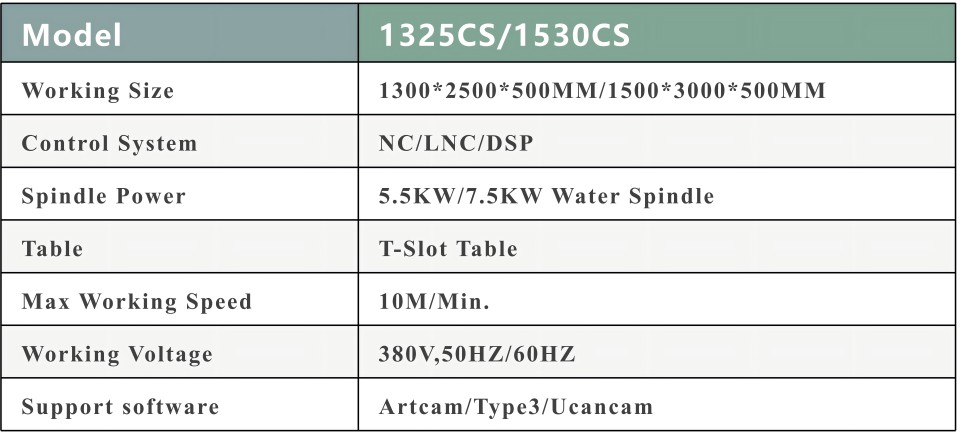

Parameter
No | Item | Data |
1 | Type | AKTEK-S1325/530 |
2 | Working area | 1300*2500*500mm/1500*3000*500mm |
3 | Control system | NC control system(can option A11 DSP control system) |
4 | Spindle motor power | 5.5kw |
5 | Spindle speed | 24000rpm/min |
6 | Machine Frame | Big thickened steel square tubes,thickness up to 8mm |
7 | Working table | water tank combined aluminum T-slot extrusion |
8 | Drivers& motors | Leadshine servo 758 motor &drivers.(Leadshine is the top one in China) |
9 | Max Working speed | 10mm/min (According to material) |
10 | X Y structure | Helical rack and pinion drive,Taiwan Hiwin square rail linear |

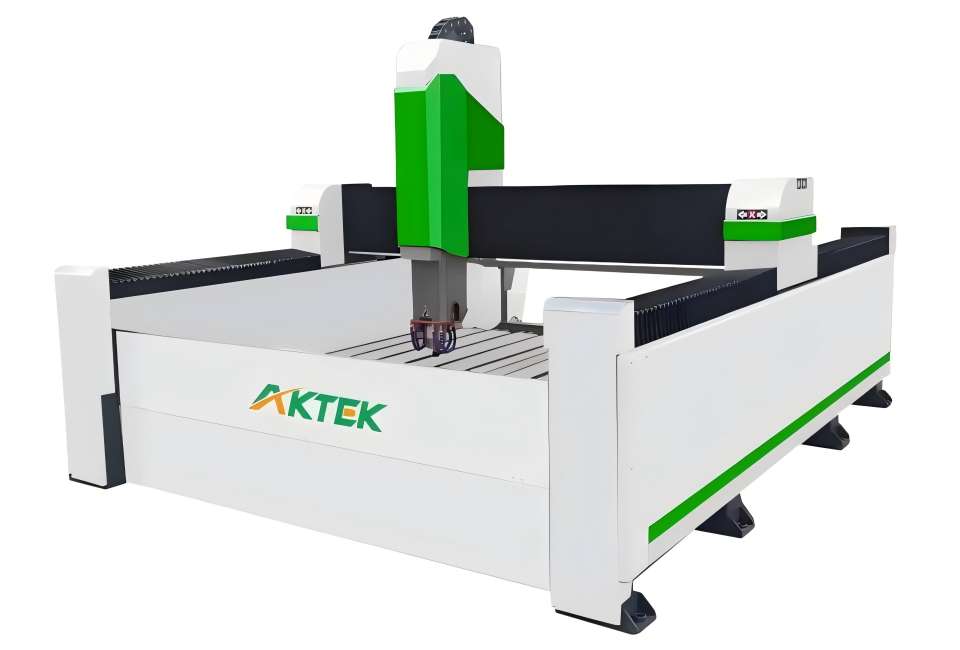

Advantage of our marble engraving machine
1. Spindle | 5.5KW Water Cooling Spindle. Famous brand CS made in china, low noise. Spindle speed: 0-24000rpm |
2. Inverter | BETA Inverter, Fuling brand It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control. |
3. Motor | 450B stepper motors With high quality & stronger power, ensure machine work very well. |
4. Driver | Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time. |
5. Stone table with roller | Heavy duty bed structure with water tank Special design for stone, with rollers, can help loading unloading marble...
|
6. Control system | NC Studio Control System, PC online |
Our Service
Pre-Sales Service
1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2. 24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.
After-Sales Service
1. Training how to instal the machine, training how to use the machine online.
2. Engineers available to clients' factory for training.
3.Guarantee for one year.
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining
6.Free technician training for customers.

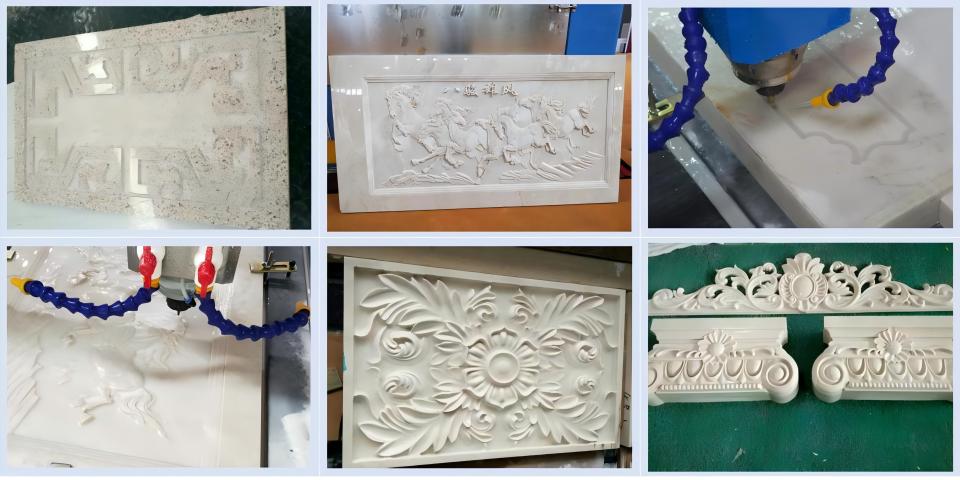

Samples Show
