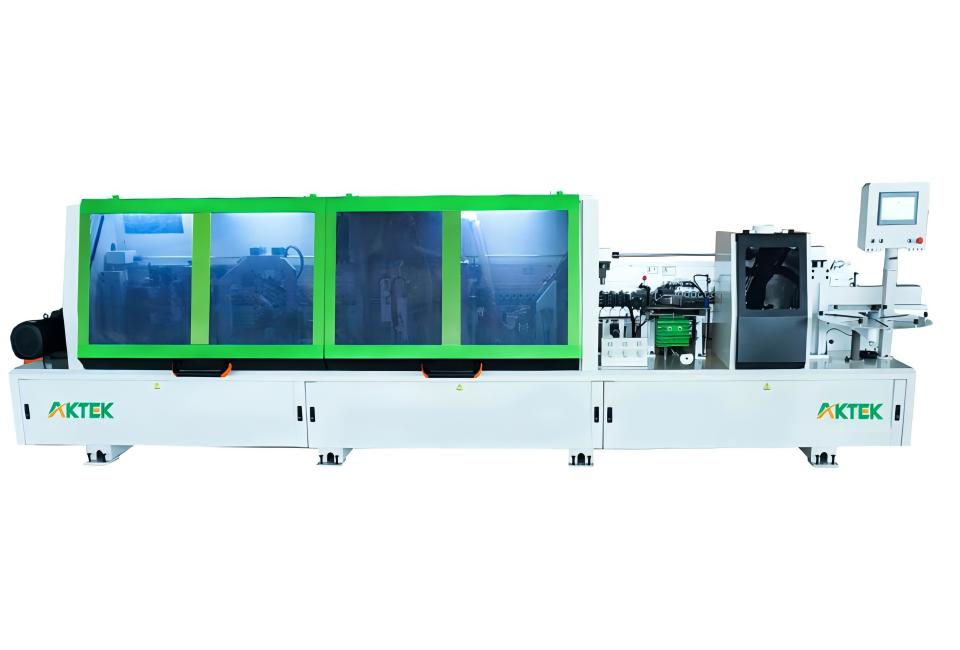

Automatic Edge Banding Machine

Automatic Edge Banding Machine


Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid (or more valuable) material. Can also be used instead of features such as face frames or molding.

Features :

1. The machine belongs to the small wood edge banding machine, its structure is compact and has a reasonable disposition. It is easy to operate.

2. With PLC system, low-voltage control circuit, more safe and easy control.

3. Button control panel, conventional motor for edge fine finishing.

4. Extendable table shelf for big panels.

5. Machine can be customized.

6. Adapted to the linear sealing of PVC,ABS, plastic foil, wood skin etc.

7. High quality and great service.


1. Adopt imported motor and high quality electrical component.

2. Product serialization and diversification is easy for the customer to choose.

3. High precision and work efficiency.

4. Automatic and precise gluing procedure as well as integrated double finish.

5. High strength frame structure, durable

6. Glue evenly, conveying stability

7. The machine is equipped with hand lubricator to reduce wear


Product Overview

Technical parameters:

Motor power13.6kw
Overall size5800×1000×1600mm
Feed speed12-20m/min
Panel thickness10-60mm
Edge thickness0.4-3mm
Panel width≥80mm
Working pressure6kg

Quick Details

Machine name:full automatic edge banding machine

Condition:New                    Place of Origin:Shandong, China

Brand Name:ALK                  Voltage:380V/415V/220V

Dimension:5800 x 1000 x 1600mm   Warranty:1 Year

Panel length:≥80mm               Panel thickness:10-60mm

Edge width:13-63mm               Edge thickness:0.4-3mm

Feed rate:16-20-23m/min           Corner rounding:Yes

Belt material:PVC, ABS, WOOD etc.   Power:13.6kw

Working pressure:0.6mpa           Weight:2500KG

MFZ360DJ Full Automatical Edge Banding Machine Process flow:

Gluing     End Trimming     Fine Trimming     Scraping     Buffing


Automatic Edge Banding Machine

1.Delivery and Package:

We will take care of your machinery packages well like picture show.

· Our workers will make sure your machine clean before package.

·We will add stretchy film for the whole machine and spare parts for delicate protection.

·We will make export standard strong Wooden box case package as your request.


The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.

3. Technical support:

·Technical support by Phone, Email ,Wechat, WhatsApp and Skype, 24 hours online.

· We provide English version manual.

· Engineer available to service machinery overseas.

4. After sales services:

Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.

If you don't know how to use the machine,we will offer you free training until you can use machine freely.If there is still have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.


Product Name: Automatic Edge Banding Machine
